Factory price OV5640 CMOS Camera Sensor Module 5MP MIPI DVP interface Mini Camera Module for STM32/K210 microcontroller
Product Description

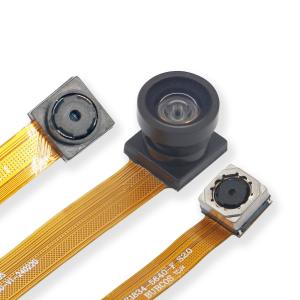

5MP OV5640 MIPI Camera Module
- The OV5640 ESP32 Camera Module is a high-performance 5MP (2592×1944 resolution) camera module with a 24Pin MIPI DVP interface designed for embedded vision applications. The module is equipped with OmniVision's OV5640 image sensor, supports autofocus, high dynamic range (HDR) and low-light enhancement, and uses OmniBSI™ technology to provide all the functions of a single-chip 5-megapixel (2592×1944) camera in a small package.
Face Recognition Camera
- The OV5640's image array is capable of running at up to 15 frames per second (fps) with a resolution of 5 megapixels, and the user has full control over image quality, format, and output data transmission. The OV5640 Camera Module also has a built-in compression engine for enhanced processing capabilities. In addition, Omnivision image sensors use proprietary sensor technology to improve image quality by reducing or eliminating common sources of illumination/power image contamination (such as fixed pattern noise, smearing, etc.), resulting in a clear, fully stable color image.
OV5640 DVP camera module functions and features
1.4 um x 1.4 ym pixel, using OmniBSl technology, excellent performance (high sensitivity, low crosstalk, low noise, high quantum efficiency).
Optical size is 1/4"
Automatic image control functions: Automatic exposure control (AEC), automatic white balance (AWB), automatic bandpass filtering (ABF), automatic 50/60 Hz brightness detection and automatic black level calibration (ABLC).
Programmable frame rate control, AEC/AGC, 16-region size/position/weight control, mirror and flip, crop, window and pan.
Image quality control: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defect pixel removal and noise reduction.
Support output formats: RAW RGB, RGB565/555, 1444, CCIR656, YUV422, 1420, YCbCr422 and compression.
Support video or snapshot. Operation
Support LED and flash strobe mode
Support horizontal and vertical sub-sampling merging
Support minimization of artifacts on merged images
Support data compression output
Support anti-shake
Standard serial SCCB interface
Digital Video Port (DVP) parallel output interface and dual-channel MIP Output interface
Embedded 1.5V regulator for core power
Programmable I/O drive capability, I/O tri-state configurability
Supports black sun removal function
Supports image size: 5 megapixels and any size from 5 megapixels
Supports auto focus control (AFC) with embedded AF VCM driver
Embedded microcontroller
Suitable for 8.5 x 8.5 x<6mm module size, CSP and Rw package
Supports internal and external frame
Synchronization of frame exposure mode
OV5640 5MP Camera Module Applications
Smartphones, embedded Linux, driving recorders, IP cameras, industrial inspection, QR code scanning, drones/sports cameras, AR/VR devices, endoscope cameras, educational kits, smart homes, environmental monitoring, etc.
Specifications: OV5640 5MP MIPI Camera
| Model No | HZ-OV5640-S1.0 |
| Sensor | 1/4’’ Omnivision OV5640 sensor |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Compression format | MJPG/YUY2 |
| Focus type | Auto Focus |
| Interface type | mipi DVP |
